- for cranes, power 24 VDC, 5 W or 100 to 240 VAC, 50 - 60 Hz, 5 W
- with 0 to 4 adjustable relay alarms
- sensor TGA-6-L with heating or TGA-6 without heating.
Wind Sensor WS-S-CL
For - sea ports, airports, cranes,
meteorologic station, ships, tug boats,
tanks, towers, power stations, buildings etc.

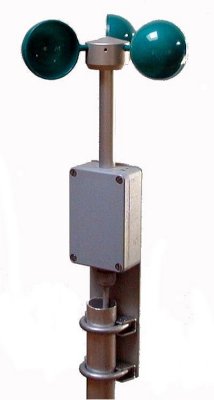

WS-CL is an integrated wind speed sensor equipped with current loop outputs.
They can be directly connected to measurement computers or dispays of weather stations which have standard current loop terminals ( 0 to 20 or 4 to 20 mA).
The sensor is closely fitted to the transmitter unit and it can be mounted as such on the top of the instrumentation mast. The power supply is 24 VDC, 5 W max. The speed sensor is fitted by heating to keep sensor moving in frozen circumtances. The transmitter unit consist of power-, transducer-, heating- and mounting parts in IP66 box.
